Carton erector

EC-801

EC-801

Carton erector (Vertical type)
DETAIL
Features

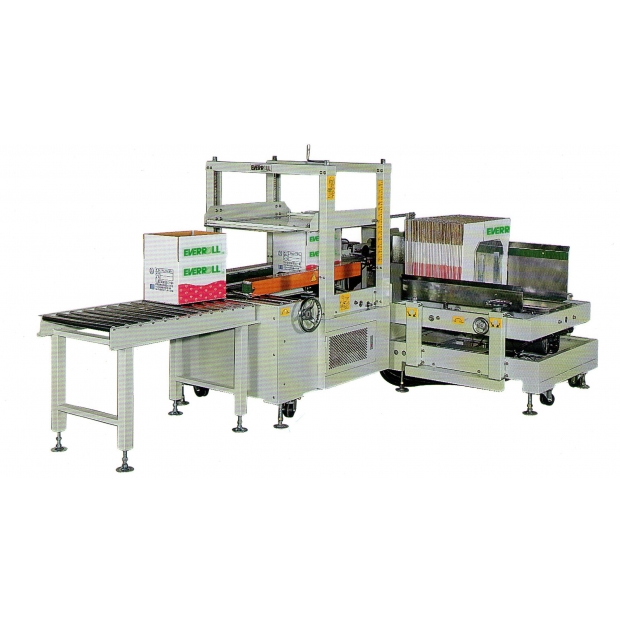

Carton erector (Vertical type)
Model:EC-801
Automatic carton erector & bottom sealer
Easy to adjust and changeover quick for various carton size
PLC controlled
Motorized hopper

Specification
Carton size range:
(L):250-570mm
(W):170-400mm
(H):90-550mm
*L570mm×H90mm, Width is above 300mm
*L570mm×W410mm, Height is above 170mm
Speed:8-12ctns/min. (Depends on carton size)
Motorized hopper:Storage around 1150mm
Machine dimension:(L)2240mm×(W)2245mm×(H)1690mm

**Above specification for referecne only, it depends on actual production.
**For other carton size range can produce case by case. Please contact us for more information.
